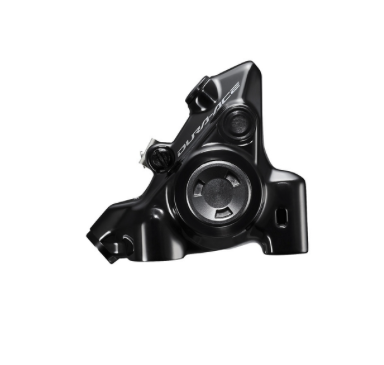

With an all-new design, DURA-ACE BR-R9270 hydraulic calipers are our most compact yet. MONO-BODY construction ensures light weight and rigidity, proving that good things can come in small packages.

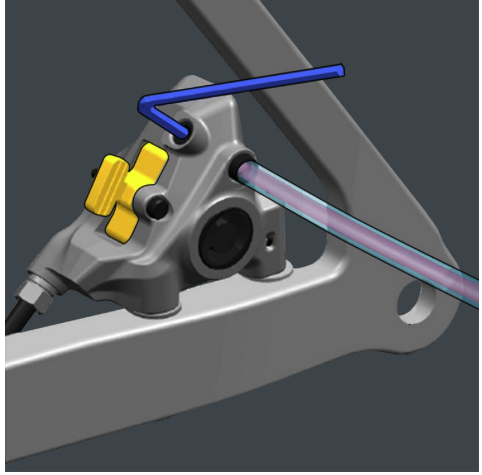

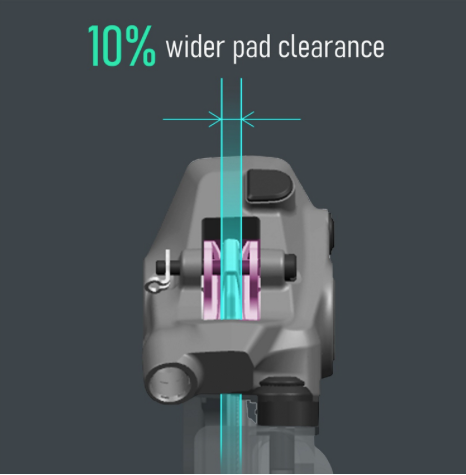

With an all-new MONO-BODY construction design, high performance braking has reached a new peak. The BR-R9270 caliper drops weight while also providing increased pad clearance, ensuring a quieter ride. Lastly, a new bleeding process makes maintenance easier than ever.
| MODEL NO | BR-R9270 |
|---|---|
| SERIES | DURA-ACE R9200 Series |
| Color | Series color |
| Average weight | 120 (Front) 110 (Rear) |
| ICE TECHNOLOGIES pad compatible caliper | ✔ |
|---|---|
| Brake hose color (kit) | Black |
| Brake hose (Kit) | SM-BH90-JK-SSR |
| Brake type | Hydraulic disc brake |
| Caliper fixing bolt_Anti loosen method | Bolt fix pin, snap ring |
| Caliper fixing bolt_Tool size | 4 mm |
| Caliper_MONO-BODY | ✔ |
| Fixing screw spec for rear mount_10 mm mount | ✔ |
| Fixing screw spec for rear mount_15 mm mount | ✔ |
| Fixing screw spec for rear mount_20 mm mount | ✔ |
| Fixing screw spec for rear mount_25 mm mount | ✔ |
| Fixing screw spec for rear mount_30 mm mount | ✔ |
| Fixing screw spec for rear mount_35 mm mount | ✔ |
| Hose joint | Straight |
| Mount type | Flat mount |
| ONE WAY BLEEDING | ✔ |
| Pad mount | Pad axle |
| Piston | 2 |
| Recommended brake lever | ST-R9270 ST-R9180 |
| Recommended disc brake rotor | RT-MT900 |
| J-Kit spec (for OEM) | ✔ |
| Oil | SHIMANO Mineral |
| Pad_Option 1 | K04Ti Metal |
| Pad_Option 2 | L04C Metal |
| Pad_Standard 1 | K03Ti Resin |
| Pad_Standard 2 | L03A Resin |
