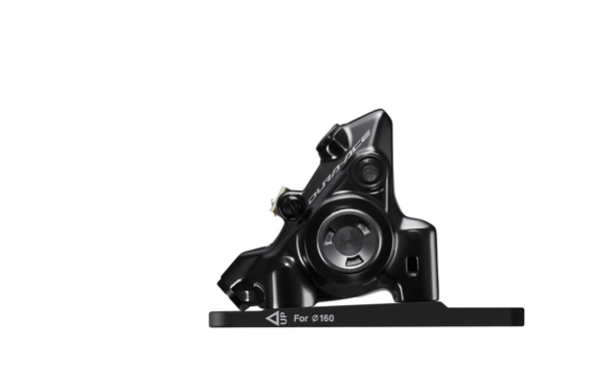

Shimano Hydraulic Disc Brake, Br-R9270, Dura-Ace, Front, Flat Mount, W/Bracket For 140/160Mm Rotor (Assembled For 160), W/L03A Resin Pad (W/Fin), Ind.Pack - 12 speed

$249.99
Availability: Ships 1-2 days

FOR PRE-ORDER ONLY!!!!!



duraace_r9200

BR-R9270 NEW

With an all-new design, DURA-ACE BR-R9270 hydraulic calipers are our most compact yet. MONO-BODY construction ensures light weight and rigidity, proving that good things can come in small packages.

With an all-new MONO-BODY construction design, high performance braking has reached a new peak. The BR-R9270 caliper drops weight while also providing increased pad clearance, ensuring a quieter ride. Lastly, a new bleeding process makes maintenance easier than ever.

  • One-piece structure maximizes stiffness and reduces weight
  • 10% wider pad clearance decreases the chance of rotor rub
  • Maintenance-friendly bleeding process

TECHNOLOGIES

PRODUCT SPECIFICATIONS

MODEL NO BR-R9270
SERIES DURA-ACE R9200 Series
Color Series color
Average weight 120 (Front) 110 (Rear)
ICE TECHNOLOGIES pad compatible caliper
Brake hose color (kit) Black
Brake hose (Kit) SM-BH90-JK-SSR
Brake type Hydraulic disc brake
Caliper fixing bolt_Anti loosen method Bolt fix pin, snap ring
Caliper fixing bolt_Tool size 4 mm
Caliper_MONO-BODY
Fixing screw spec for rear mount_10 mm mount
Fixing screw spec for rear mount_15 mm mount
Fixing screw spec for rear mount_20 mm mount
Fixing screw spec for rear mount_25 mm mount
Fixing screw spec for rear mount_30 mm mount
Fixing screw spec for rear mount_35 mm mount
Hose joint Straight
Mount type Flat mount
ONE WAY BLEEDING
Pad mount Pad axle
Piston 2
Recommended brake lever ST-R9270 ST-R9180
Recommended disc brake rotor RT-MT900
J-Kit spec (for OEM)
Oil SHIMANO Mineral
Pad_Option 1 K04Ti Metal
Pad_Option 2 L04C Metal
Pad_Standard 1 K03Ti Resin
Pad_Standard 2 L03A Resin
